Description

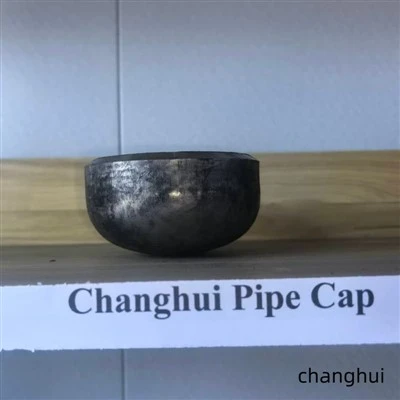

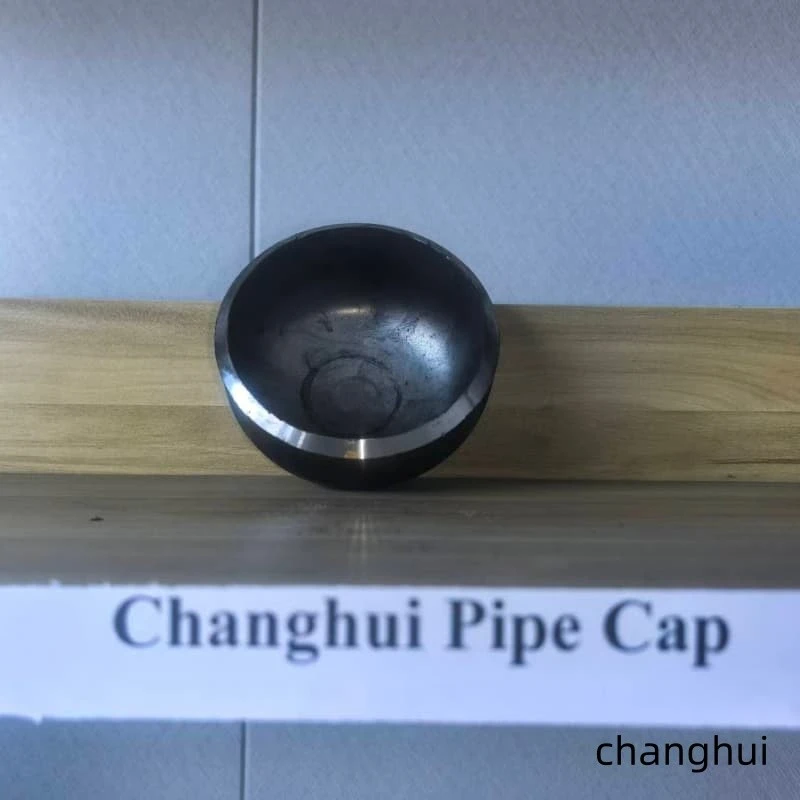

The cap has a curved end and a cylindrical section prepared to match the specified pipe outside diameter. EN pipe caps can be formed from carbon steel, stainless steel, SA516 Gr70, SA516 Gr60, or another material named in the purchase specification. Regular dimensions may be pressed, while larger or custom sizes can be spun. After forming, the fitting is trimmed and measured before beveling or machining. Surface treatment can include blasting, coating preparation, pickling, passivation, or polishing. Material identity, size marks, and project tags remain with the caps through packing and shipment.
Components
A formed crown closes the pipe end.
The cylindrical edge follows the listed outside diameter.

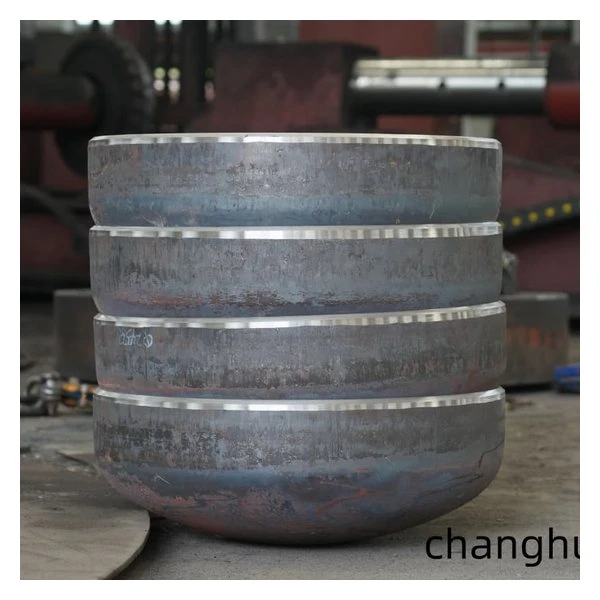

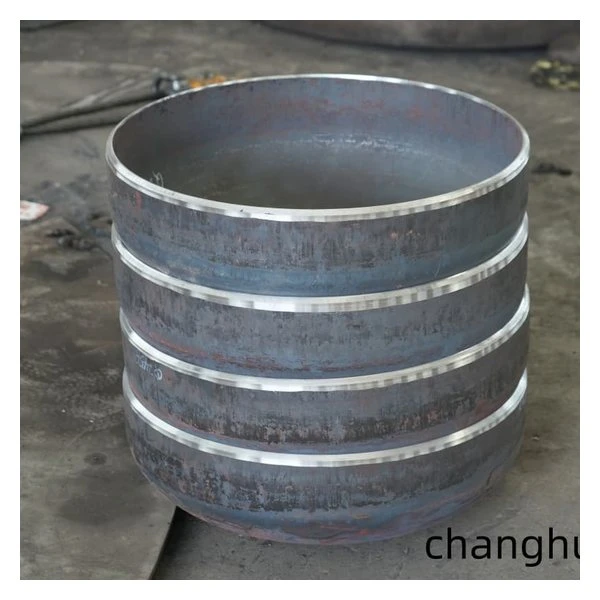

The connection can be square, beveled, or left with machining allowance.
Drain holes, vents, project marks, and handling features may be added to EN pipe caps.
Product Parameters
|
DN |
Outside Diameter D/mm |
Wall Thickness T/mm |
Height K/mm |
Mass/kg |
|
15 |
21,3 |
2,0 |
25 |
- |
|
15 |
21,3 |
3,2 |
25 |
0,04 |
|
15 |
21,3 |
4,0 |
25 |
- |
|
20 |
26,9 |
2,0 |
25 |
- |
|
20 |
26,9 |
3,2 |
25 |
0,07 |
|
20 |
26,9 |
4,0 |
25 |
- |
|
25 |
33,7 |
2,3 |
38 |
- |
|
25 |
33,7 |
3,2 |
38 |
0,10 |
|
25 |
33,7 |
4,5 |
38 |
- |
|
32 |
42,4 |
2,6 |
38 |
- |
|
32 |
42,4 |
3,6 |
38 |
0,14 |
|
32 |
42,4 |
5,0 |
38 |
- |
|
40 |
48,3 |
2,6 |
38 |
- |
|
40 |
48,3 |
3,6 |
38 |
0,17 |
|
40 |
48,3 |
5,0 |
38 |
- |
|
50 |
60,3 |
2,9 |
38 |
- |
|
50 |
60,3 |
4,0 |
38 |
0,24 |
|
50 |
60,3 |
5,6 |
38 |
0,32 |
|
65 |
76,1 |
2,9 |
38 |
- |
|
65 |
76,1 |
5,0 |
38 |
0,39 |
|
65 |
76,1 |
7,1 |
38 |
0,52 |
|
80 |
88,9 |
3,2 |
51 |
- |
|
150 |
168,3 |
4,5 |
89 |
- |
|
150 |
168,3 |
7,1 |
89 |
2,90 |
|
150 |
168,3 |
11,0 |
89 |
4,40 |
|
200 |
219,1 |
6,3 |
102 |
- |
|
200 |
219,1 |
8,0 |
102 |
5,00 |
|
200 |
219,1 |
12,5 |
102 |
7,60 |
|
250 |
273,0 |
6,3 |
152 |
- |
|
250 |
273,0 |
10,0 |
152 |
9,80 |
|
300 |
323,9 |
7,1 |
178 |
- |
|
300 |
323,9 |
10,0 |
178 |
14,00 |
|
350 |
355,6 |
8,0 |
191 |
- |
|
350 |
355,6 |
11,0 |
191 |
18,00 |
|
400 |
406,4 |
8,8 |
203 |
- |
|
400 |
406,4 |
12,5 |
203 |
26,00 |
|
450 |
457,0 |
10,0 |
229 |
29,00 |
|
500 |
508,0 |
11,0 |
254 |
37,00 |
|
600 |
610,0 |
12,5 |
305 |
54,00 |
|
700 |
711,0 |
- |
305 |
- |
|
800 |
813,0 |
- |
305 |
- |
Our Services
Material and cap dimensions can be coordinated with the project pipe schedule.
Pressing and spinning are available for different diameter ranges.
Square ends, bevels, machining allowance, openings, and project marks can be prepared.
Surface work may include blasting, coating preparation, pickling, passivation, or polishing.
Material certificates and dimensional records can be supplied with the shipment.
Export packing and labels can be organized by DN, thickness, line number, or equipment tag.
The table is retained as supplied, including blank mass entries, so the document does not replace missing values with estimates.
Blank entries remain blank rather than being replaced with estimates. Project labels can also show DN, thickness, line number, and destination for easier receiving checks.
Frequently Asked Questions (FAQ)
Q: Can an unlisted wall thickness be reviewed?
A: Yes. Outside diameter, material, forming route, and finished geometry must be checked first.
Q: Can a polished finish be supplied?
A: Yes, where the selected material and service specification require it.
Q: What information is needed for EN pipe caps?
A: Send DN, outside diameter, wall thickness, K dimension, material, edge preparation, quantity, and inspection scope.
